常州は勝利パックCO.、株式会社を結合した
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | United Win |
| モデル番号: | SBY-650X4 |
| 最小注文数量: | 1セット |
| 価格: | USD |
| パッケージの詳細: | 木製ケース |
| 受渡し時間: | 3ヶ月 |
| 支払条件: | T/T,L/C |
| 供給の能力: | 3sets/month |
| 名前: | 円の織機機械 | 働く幅、二重平たい箱: | 60-750mm |
|---|---|---|---|
| 機械1台あたりのシャトルの数: | 4 | 緯糸密度: | 10-24pcs/10cm |
| 供給を歪めなさい: | モーター | スピード: | 0-120rpm |
| ボビンの内部の直径: | 38mm | ボビンの長さ: | 230mm |
| ゆがみヤーンの数: | 512pcs | 主要なモーターの正常な評価: | 2.2KW |
| 上昇モーター力: | 22N | 巻上げモーター力: | 10kgsトルク モーター |
| 総電源: | 3KW | 保証: | 1 年 |
| ハイライト: | 4つのシャトル回形織機,包装 円形織機 |
||

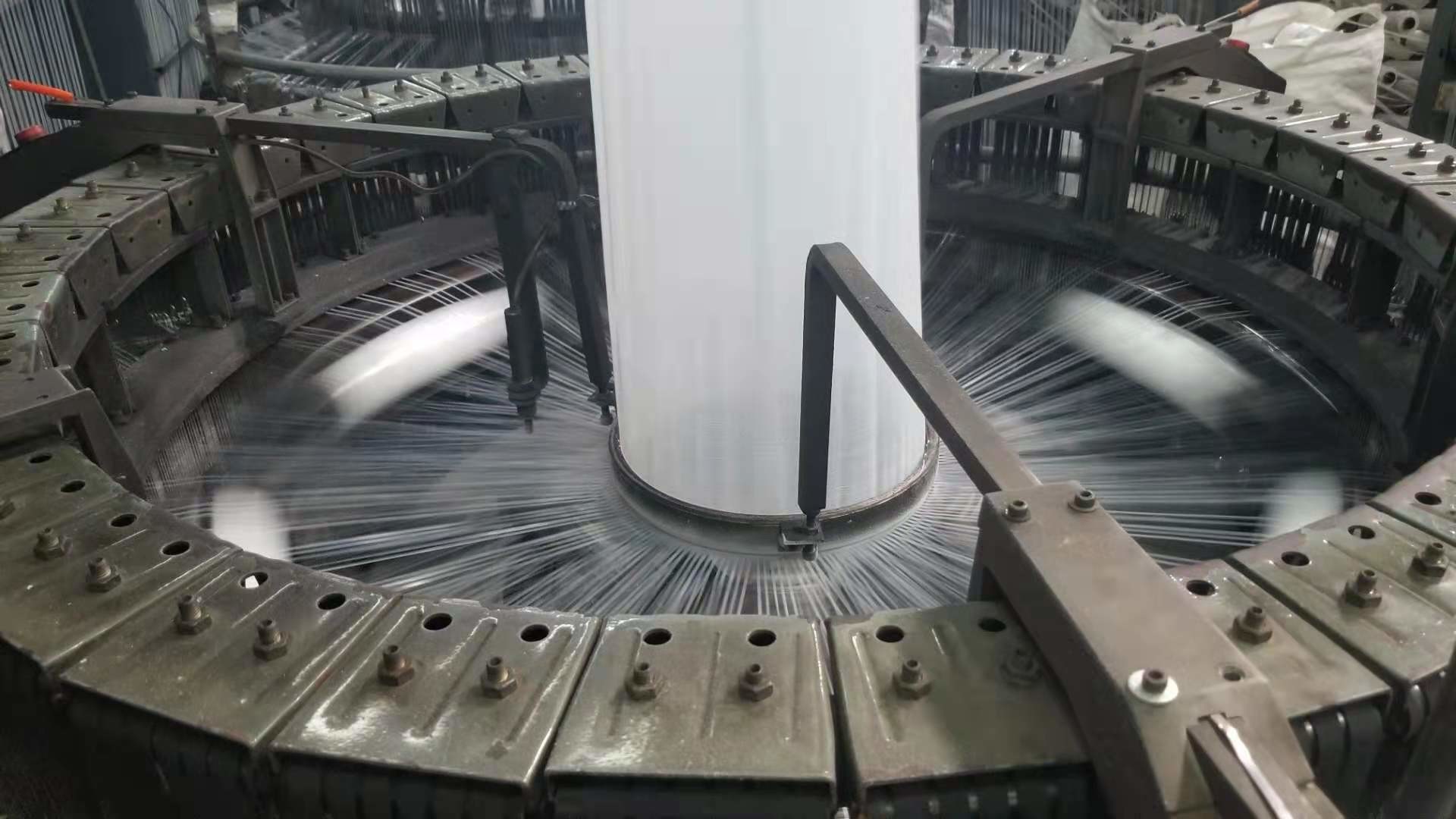

SBY-650X4 Four Shuttle Plastic Leno Mesh Bag Circular Loom Machine
Descripition:

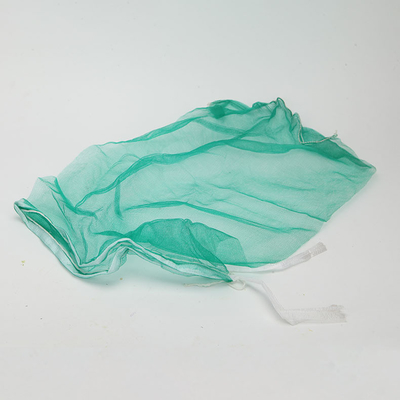

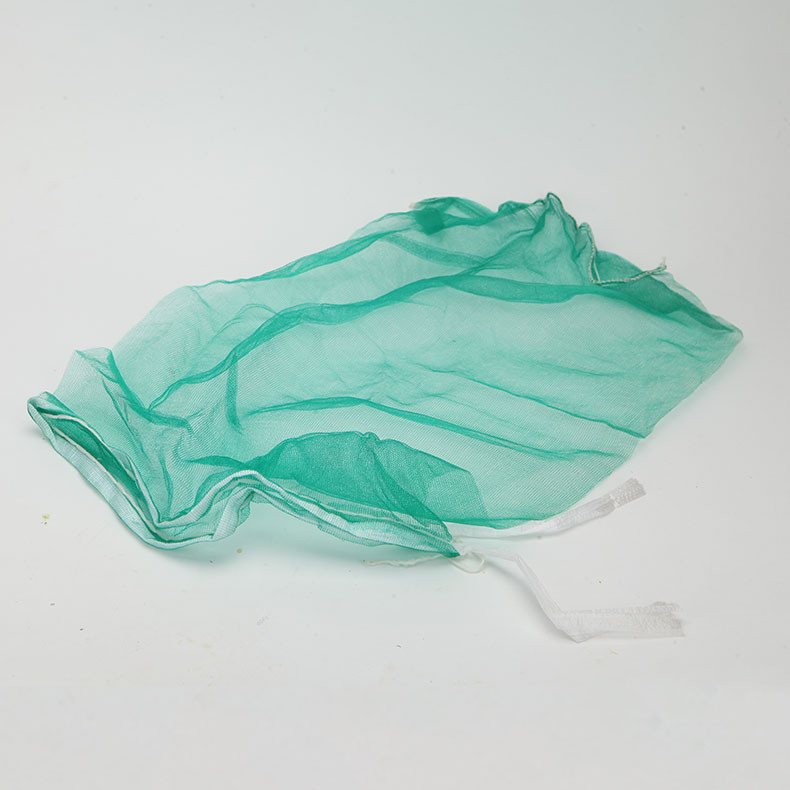

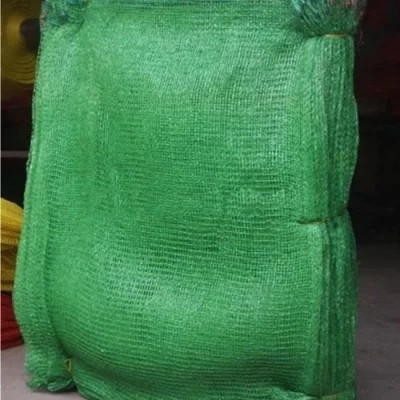

Mesh bag circular loom is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.
Advantages:
1. The structure design of the whole machine is novel and reasonable, the maintenance is convenient.
2. High speed, low noise , low friction, energy saving , high efficiency.
3. Adopting the interweaving technology, the weft is not easy to loosen, and it is not easy to stretch after filling with fruits and vegetables.
4. The loom is controlled by Inverter, and it will automatically stop if the weft are finished or the warp, weft yarn is cut off, machine also equip with a meter counter.
5. Intelligent system is used for lifting and winding of fabric, automatic tracking and synchronization.
Specifications:
| Working width,double flat | 60-750mm |
| Number of shuttles per machine | 4 |
| weft density | 10-24pcs/10cm |
| Speed | 0-120RPM |
| Warp feeding | Motor |
| Inner diameter of Bobbin | 38mm |
| Bobbin length | 230mm |
| Max. bobbin diameter | 100mm |
| Number of Warp yarns | 512pcs |
| Normal rating of main motor | 2.2kw |
| lift motor power : | 22N |
| winding motor power: | 10kgs Torque motor |
| Total power | 3Kw |
| Installed size (mm) | 10500* 2400* 3200 |
| weight | 2T |
Application:
FAQ:
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non-woven material, power source, air compressor etc. Prepared)
2. How many days will you finish installing?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine has one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date
6. How could you do after one year warranty period?
We also can-do service for you, but you need pay salary for our technicians 80USD/day for each person.
7. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time.
Our engineers will take a solution video according your description.
